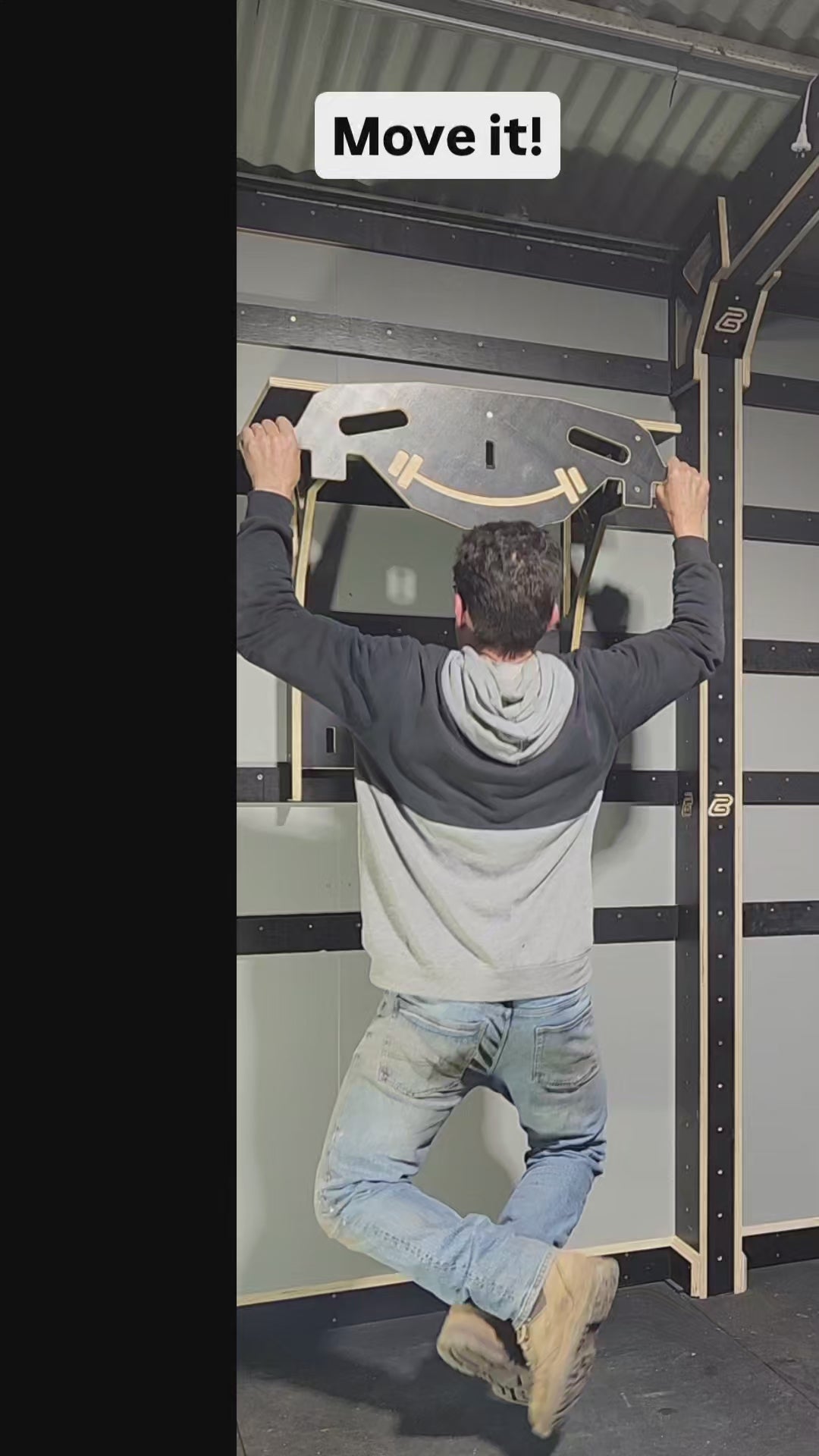

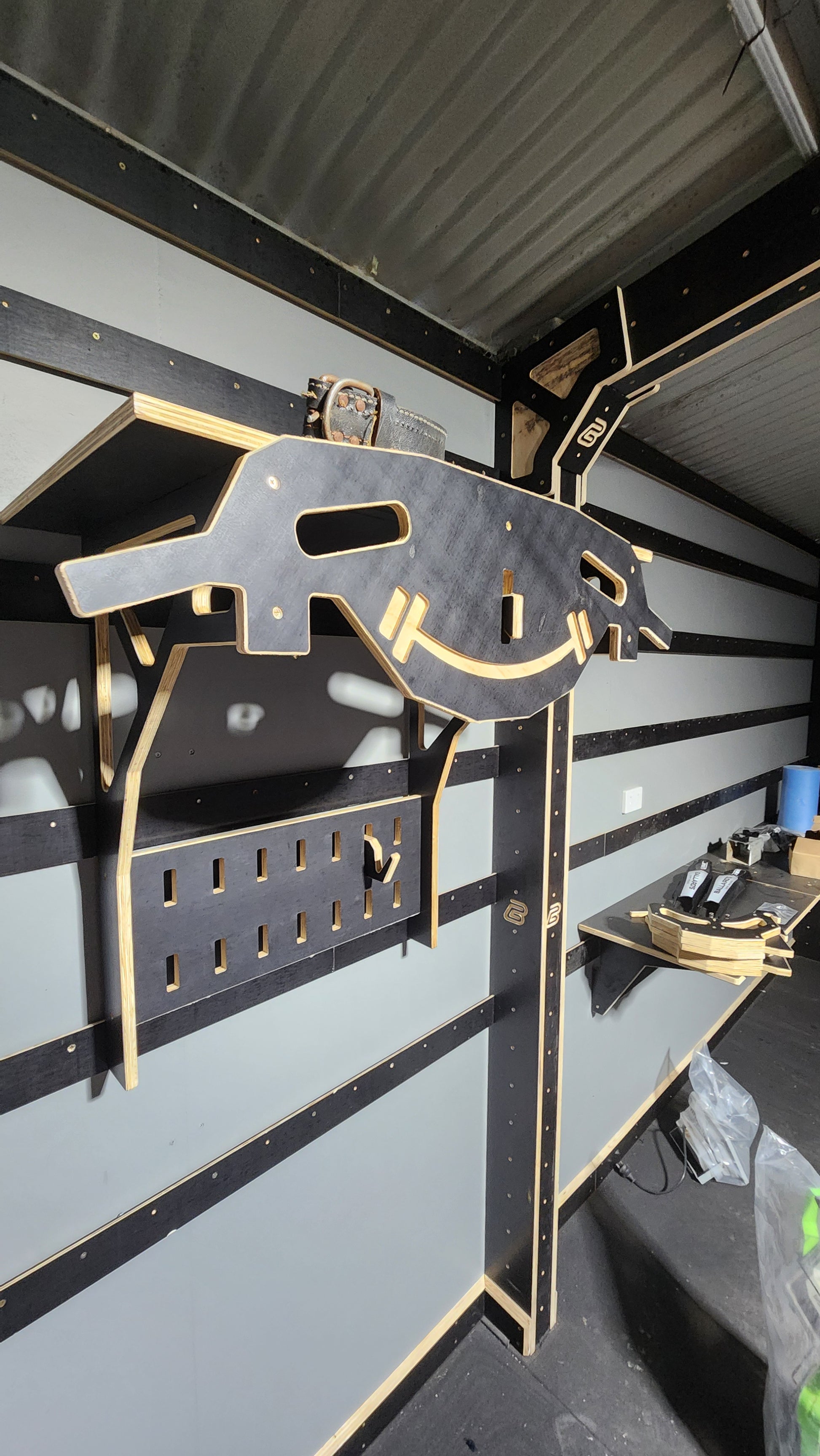

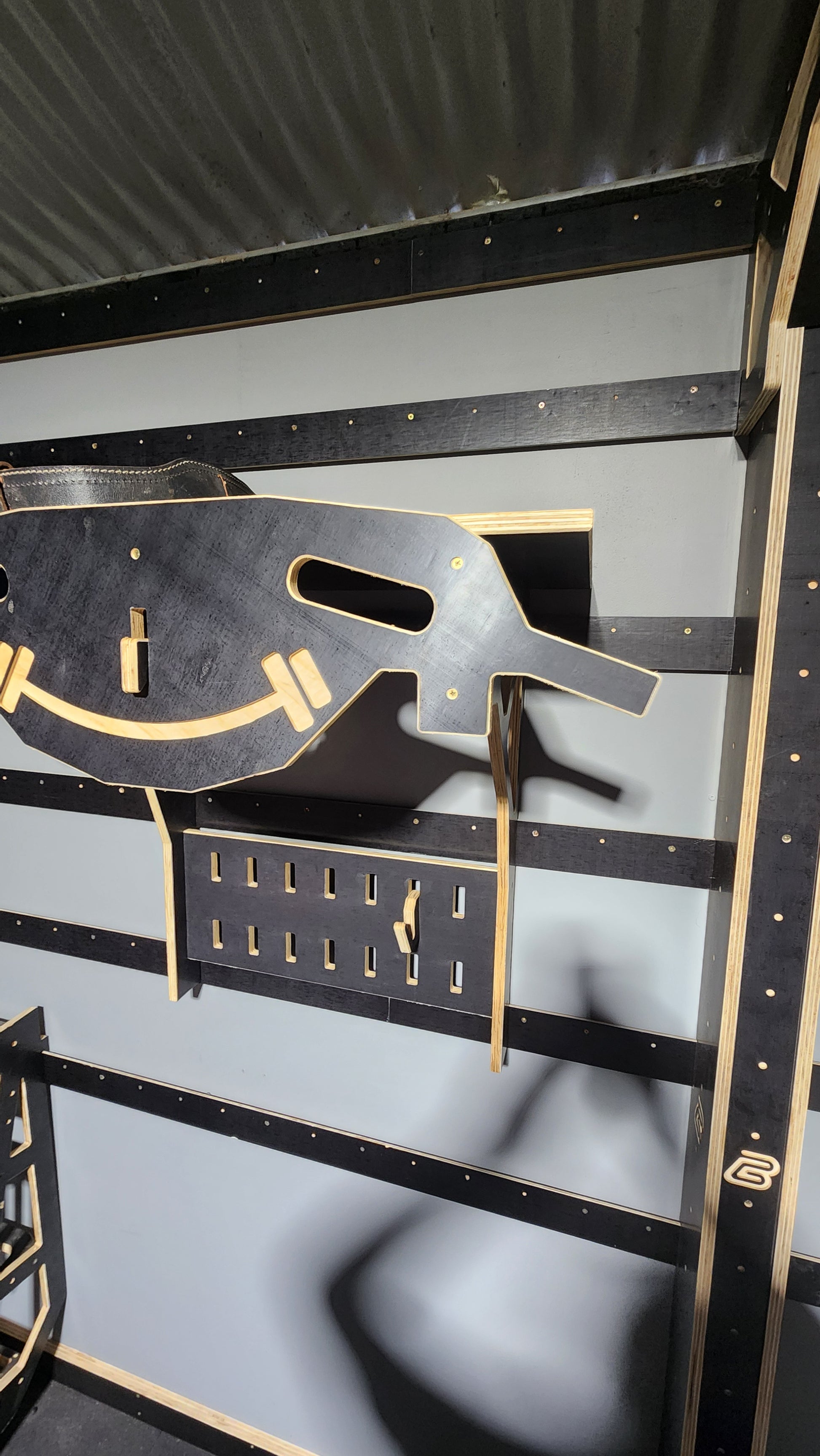

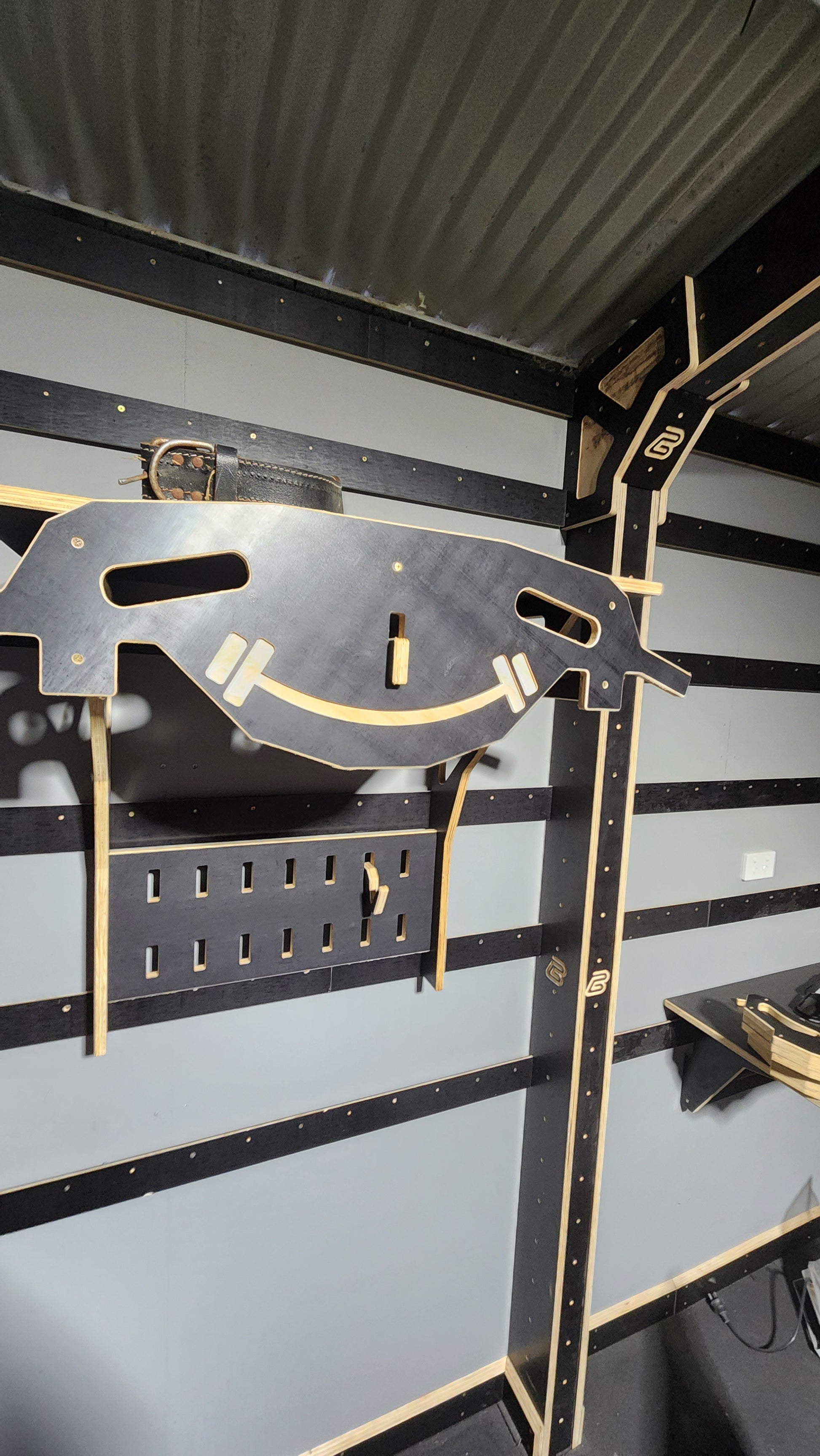

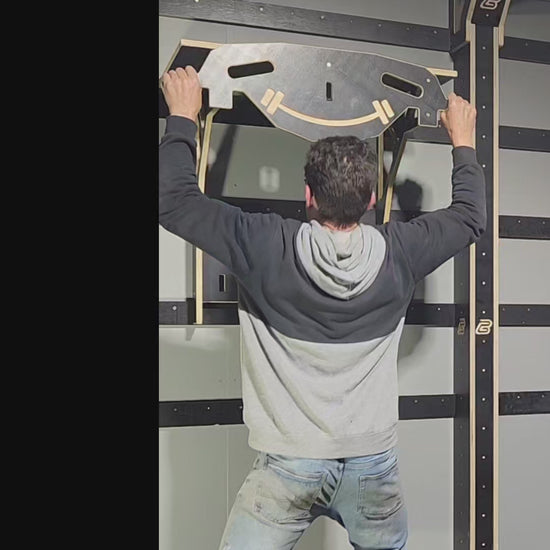

Transform your home gym with this versatile chin up rack system. Engineered to mount seamlessly onto French cleat walls, it delivers a fully customizable workout setup tailored to your space. The package includes detailed machining instructions via text file, making fabrication straightforward. A built-in 14-slot storage rack on the vertical frame keeps removable hooks organized and within reach. The chin up bar features elastic strap attachment points, enabling assisted pull-ups for progressive strength training. Whether you're building foundational upper body power or advancing your fitness routine, this modular design grows with your goals while maximizing your wall real estate.
There are 4 sets of drawings to cater from 5/8" to 3/4" thickness in plywood. Each drawing set is in the following thickness range
15.5mm to 16.5 mm = for 5/8" thick plywood. 16.5mm to 17.5 mm 17.5mm to 18.5 mm 18.5mm to 19.5 mm = for 3/4" thick plywood.
