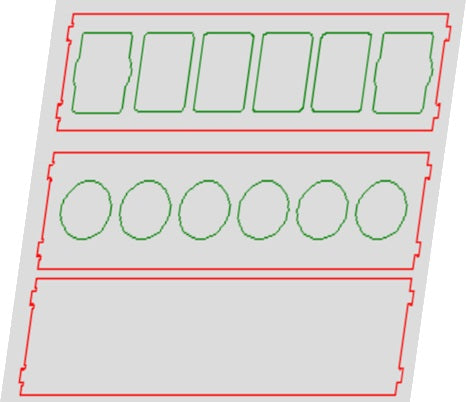

Digital plans + files - CNC router use - Slimline shelving set

Transform your cramped workshop or garage with this comprehensive CNC router file set designed for slimline shelving solutions. These precision-engineered digital files eliminate the guesswork of fitting storage into tight spaces, delivering customizable shelving that maximizes every inch. Perfect for sheds, garages, and workshops where standard units simply won't fit, this set empowers you to machine professional-grade shelving that's both safe and highly functional. Download, cut, and assemble your way to an organized workspace that actually works for your needs.

Strength - these units have a mortise and tenon type fixing - incredibly strong and pretty much hidden from view.  The tolerance is tight and this is the reason that there has to be a range of sizes to suit various thicknesses of plywood.

All plans are for the following plywood thicknesses

17.3 mm (Standard for formply in Australia) - will work well with 16.8mm to 17.8mm
17.9 mm (Actual thickness of 0.703" - popular in the USA) - will work well from 17.4mm to 18.4mm
18.5 mm (Actual thickness of 23/32 is 18.3mm) will work well from 18.5mm to 19mm.

Shelving designs as follows:

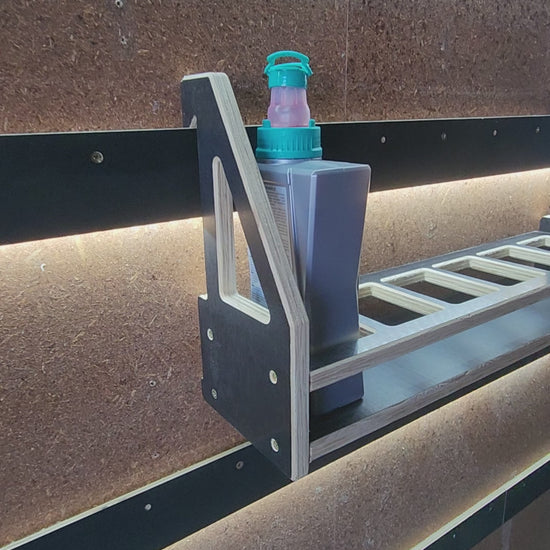

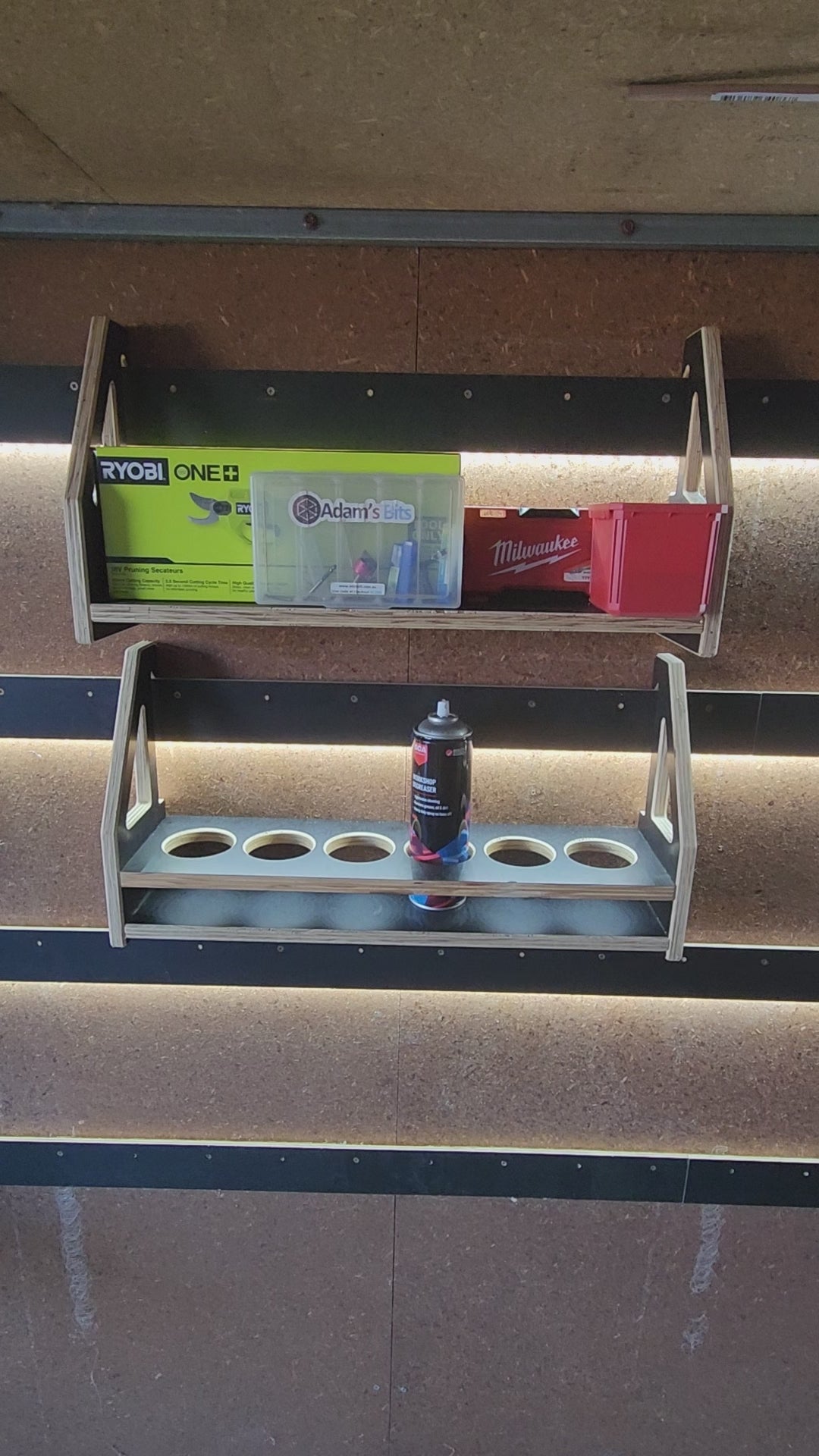

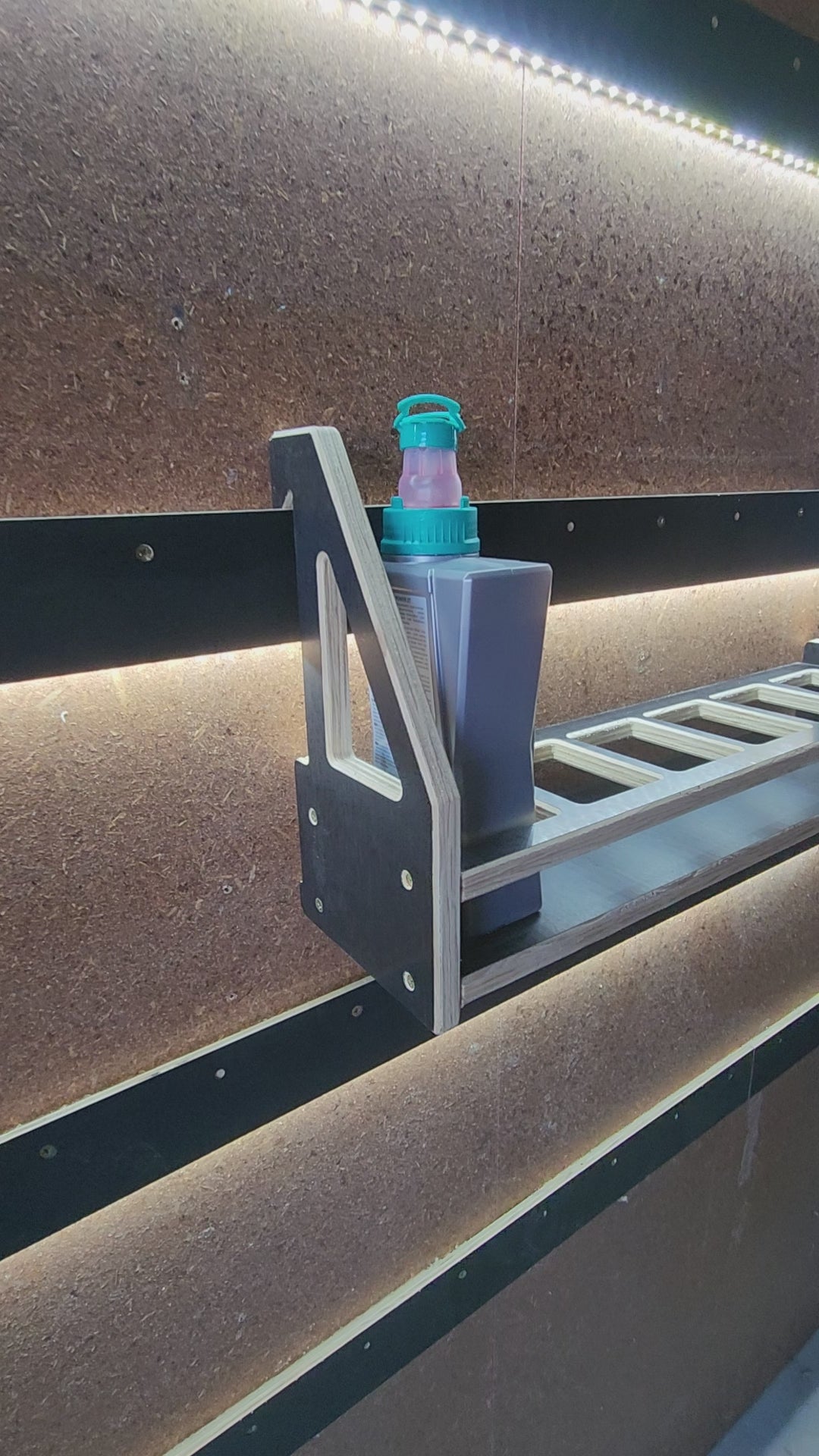

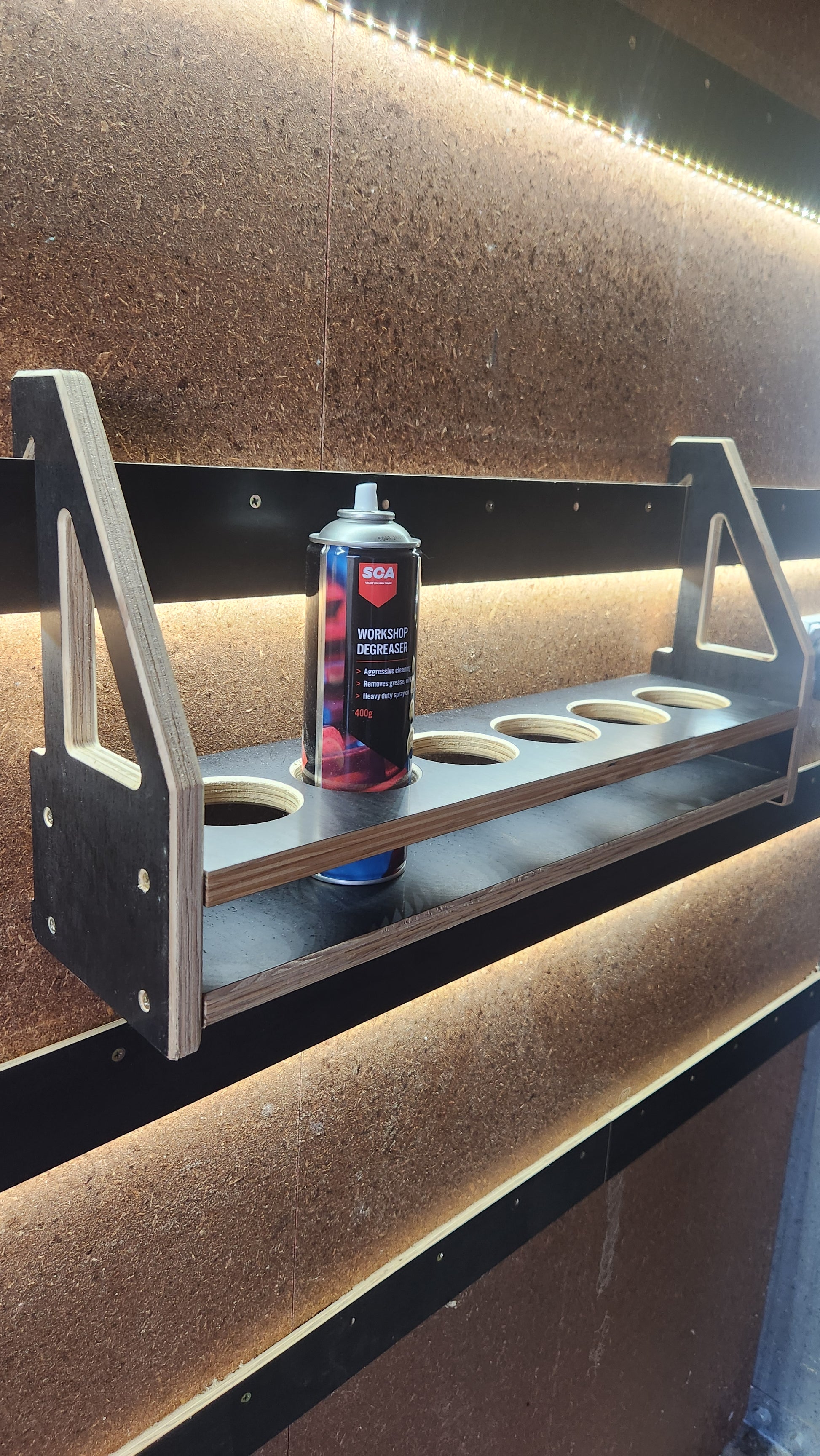

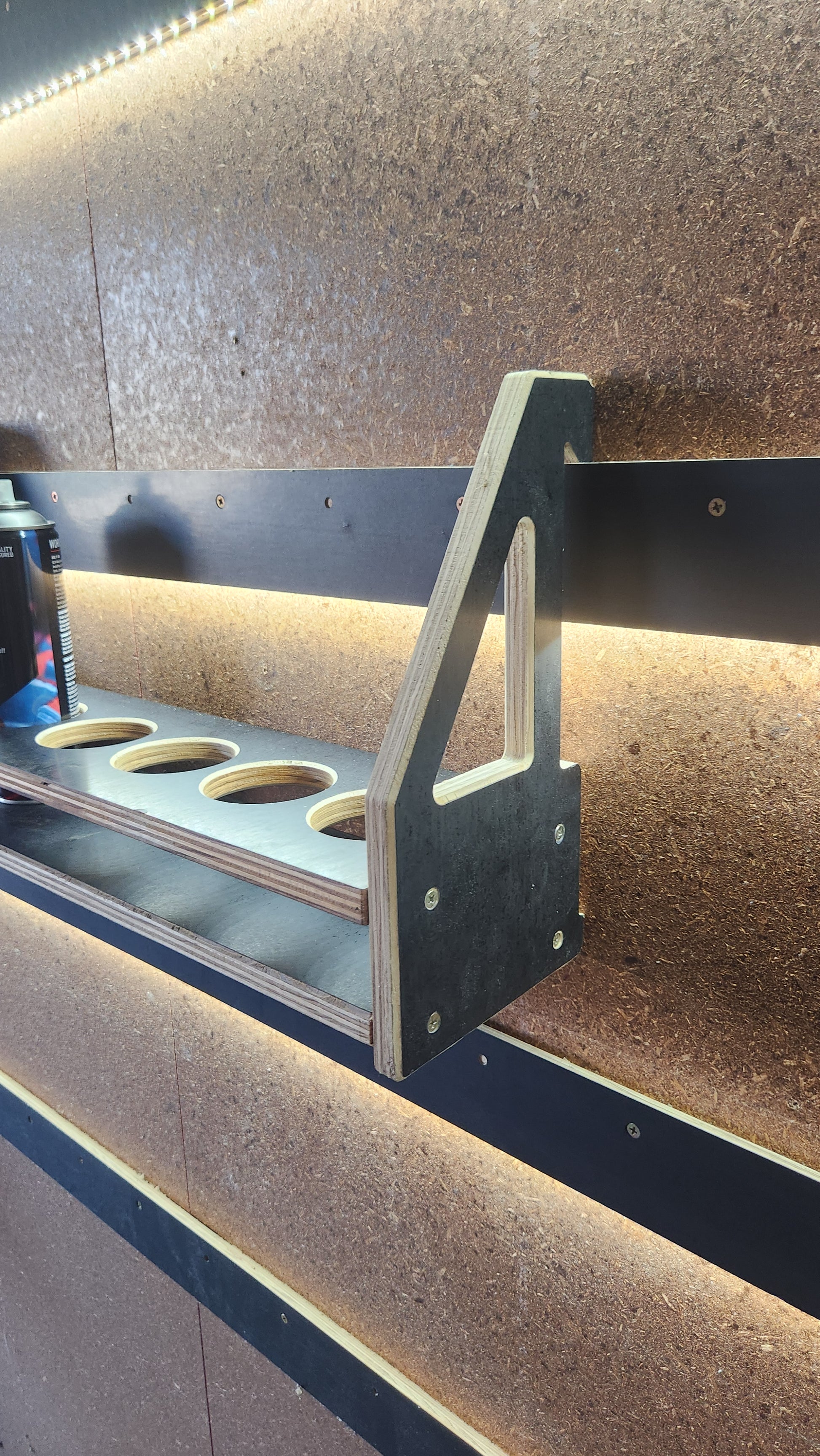

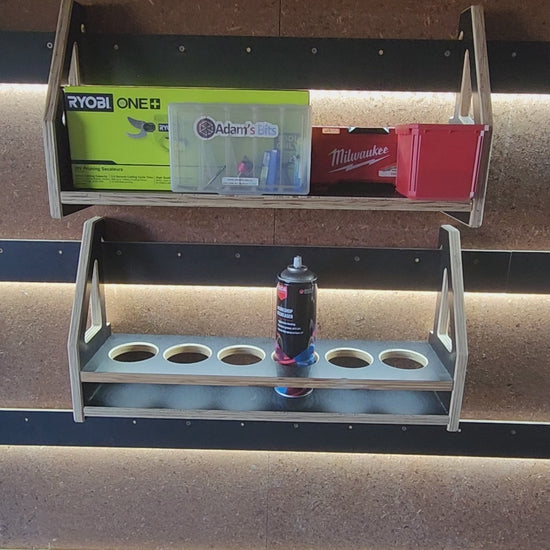

Aerosol unit  - stores 6 cans in 150mm depth from the wall.

Square container unit - stores 6 rectangular containers in 150mm from the wall.

Slimline shelving unit - single shelf 150mm from the wall.

Slimline shelving unit - single shelf 200mm from the wall.

File formats as follows:

PDF / AI / DXF / SVG

There is also a simple machining guide / assembly guide included in the file pack.

Note: the files are to help make the slimline shelving units using a CNC router - and as such, they are not for the physical units themselves.  We will be adding more files to our MX range shortly.
