Build your ultimate workshop / man cave / shed! Keep your off-road wheels and tyres / tires in pristine condition with this digital storage solution guide. Designed for riders who demand organization without compromise, it features practical access points and robust construction to protect your valuable equipment. Transform your garage from chaotic to controlled—ensure your bike is always race-ready with a storage system built for serious enthusiasts who refuse to settle for clutter.
The space between the side rails is 350mm - enough for the largest ramps on the current market!
Suitable for MX / Enduro / Tyres / Wheels / rims.
Strength - these units have a mortise and tenon type fixing - incredibly strong and pretty much hidden from view. The tolerance is tight and this is the reason that there has to be a range of sizes to suit various thicknesses of plywood.
There are three sizes for plywood thicknesses - 17.3 mm (Standard for formply in Australia) - will work well with 16.8mm to 17.8mm 17.9 mm (Actual thickness of 0.703" - popular in the USA) - will work well from 17.4mm to 18.4mm 18.5 mm (Actual thickness of 23/32 is 18.3mm) will work well from 18.5mm to 19mm
File formats as follows:
PDF / AI / DXF / SVG
There is also a simple machining guide / assembly guide included in the file pack.

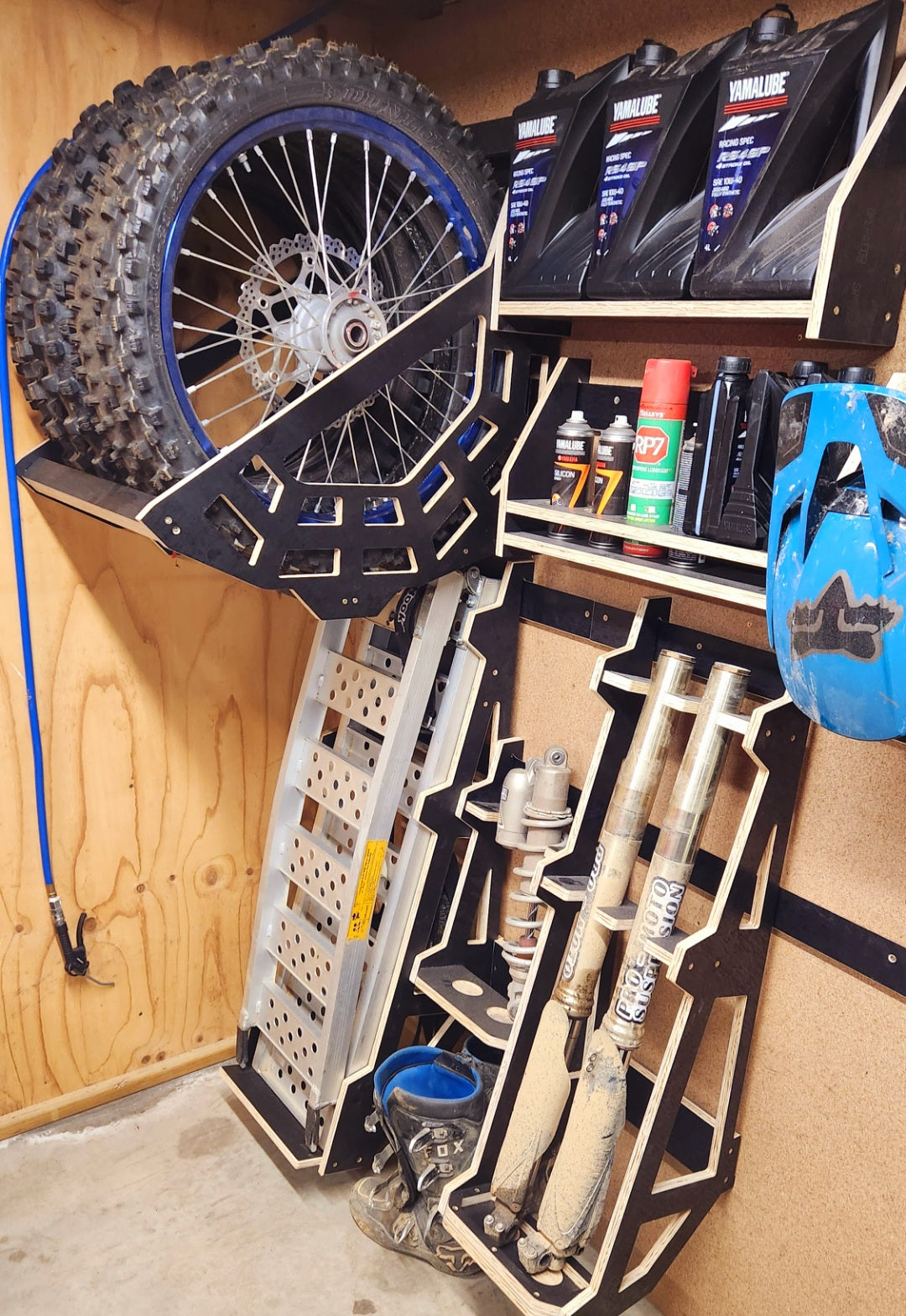

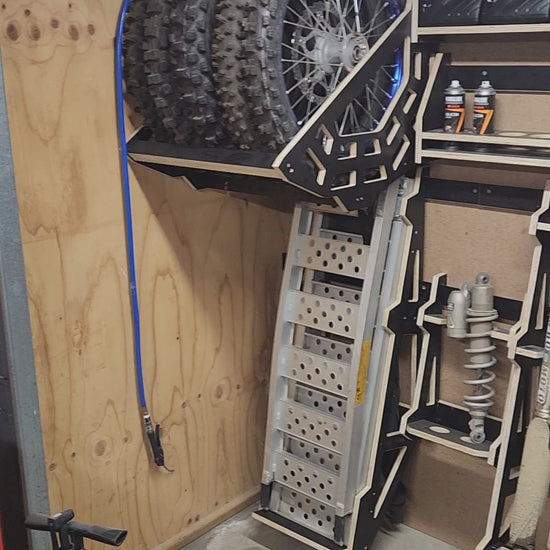

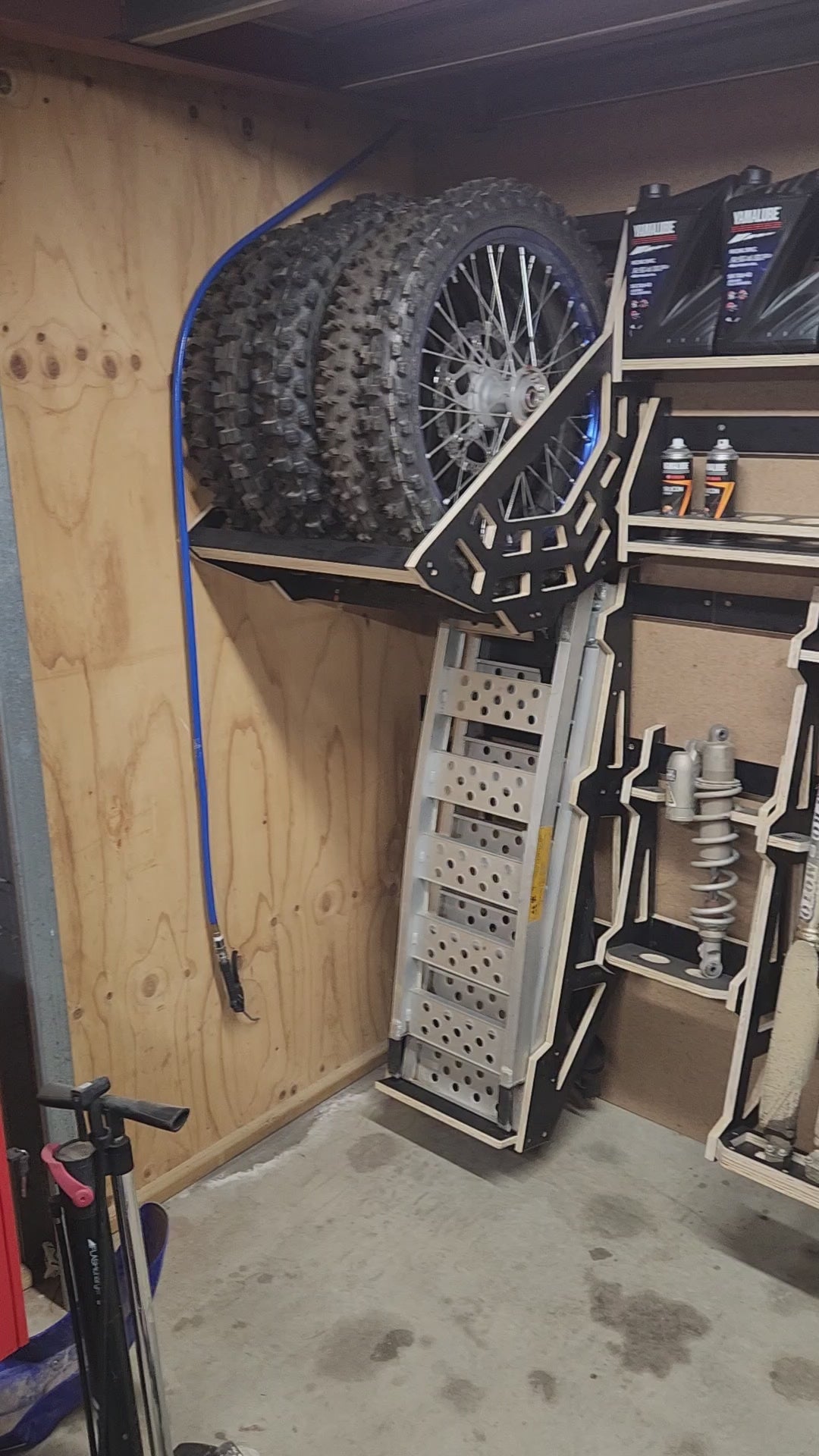

Note: the files are for the single wheel rack unit - not the full collection that has oil, helmet, forks, ramp etc. We will be adding more to our MX range shortly.
