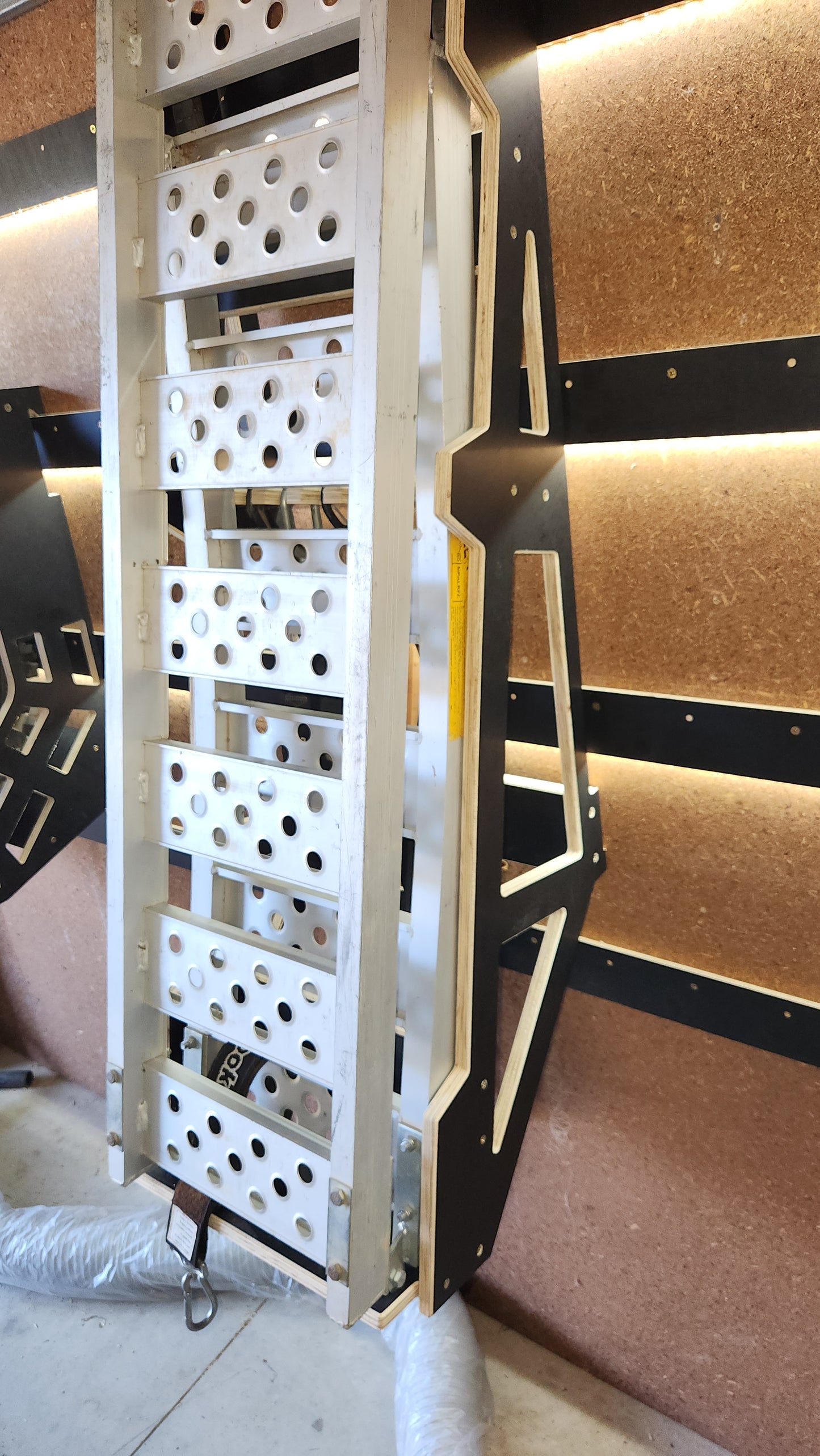

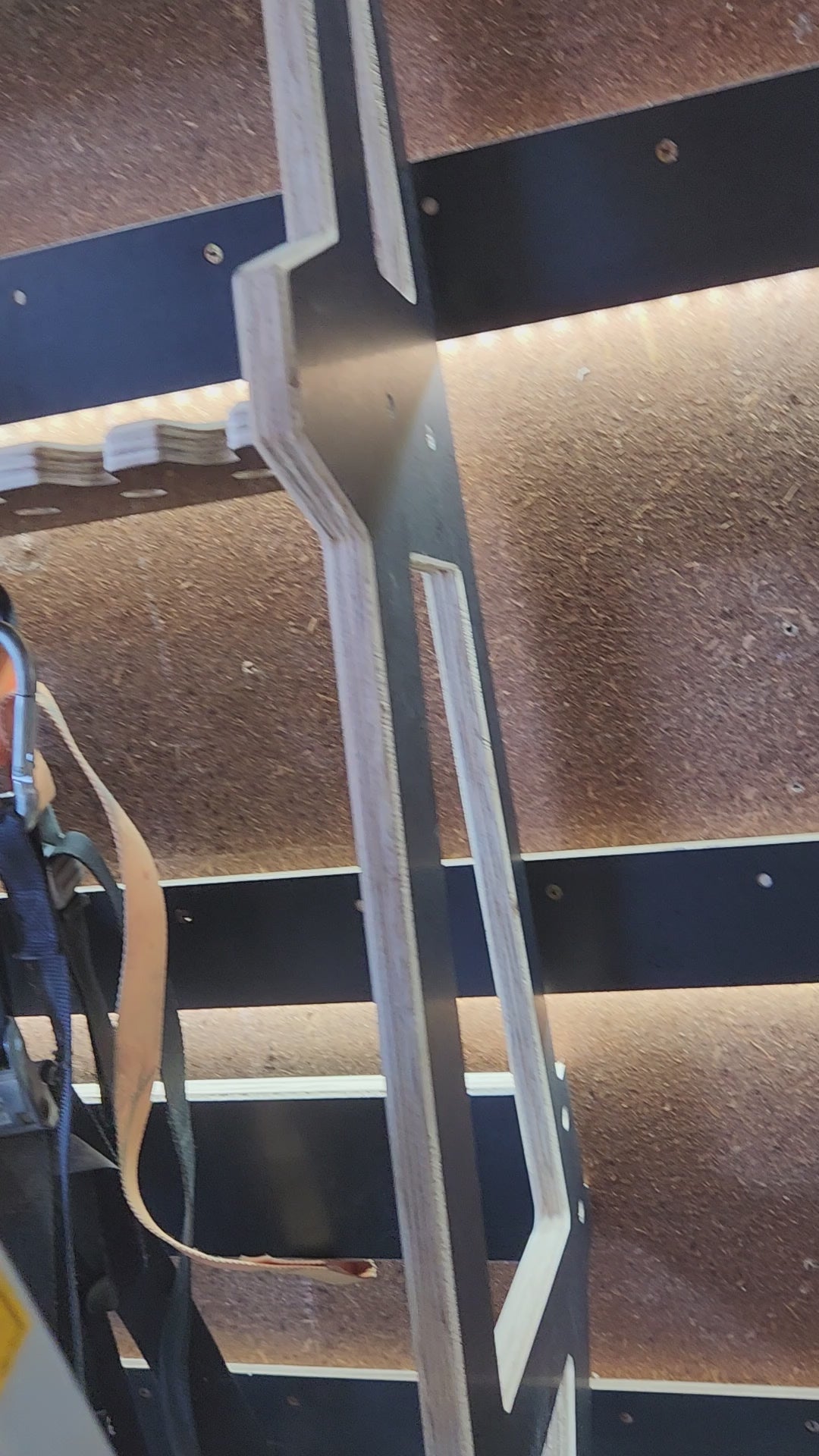

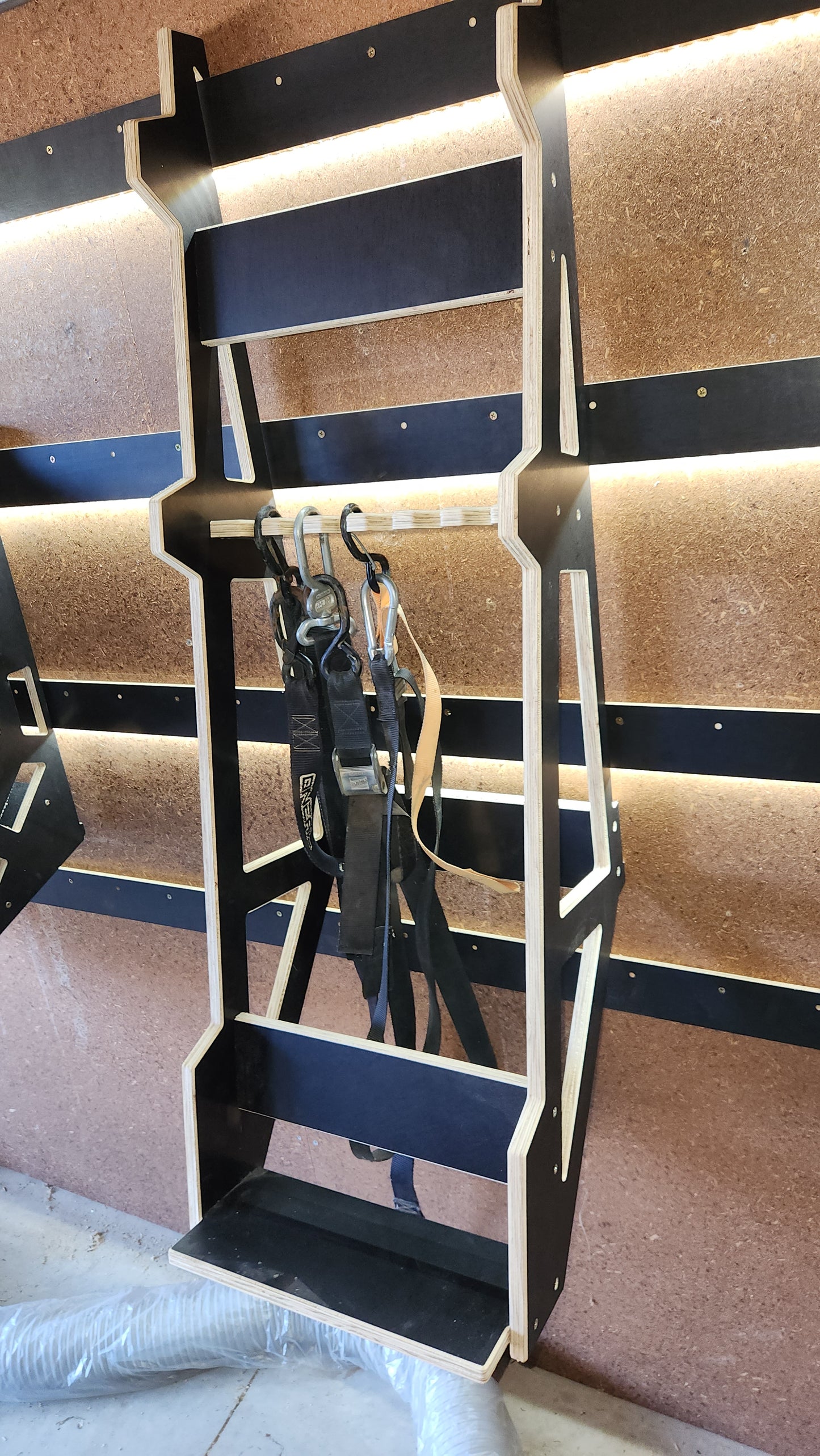

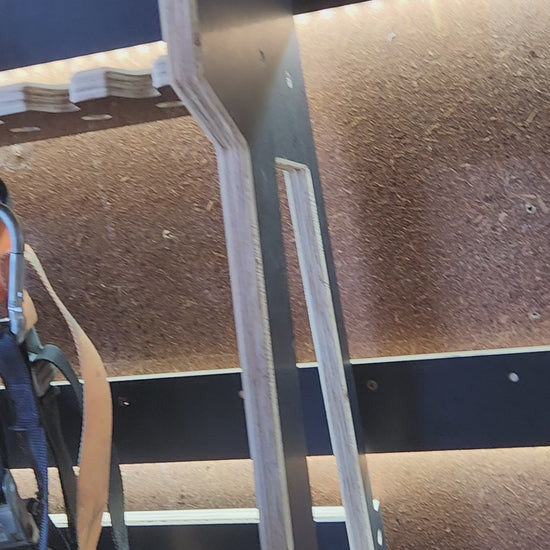

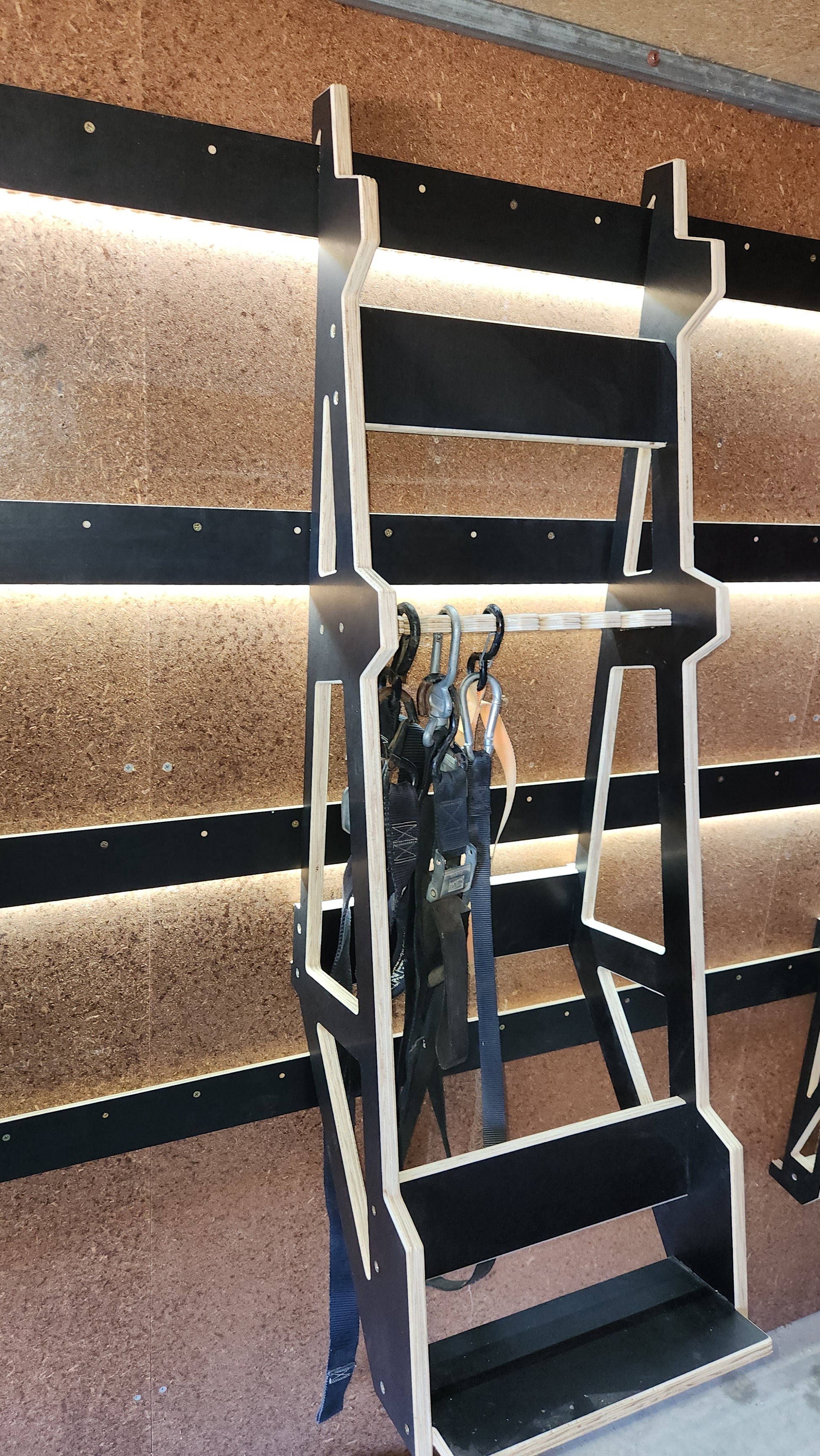

Digital plans / files - MX - loading ramp storage + tie down storage -use your CNC router

Organize your off-road gear like a pro with this comprehensive set of files to make a bike ramp store with a variety of plywood thicknesses. Perfect for riders who take their equipment seriously, it walks you through building dedicated spaces for your MX ramp and tie-down systems. Say goodbye to scattered gear and damaged equipment—this solution delivers the structure and accessibility serious enthusiasts need to keep everything protected and within reach. Create a workshop that reflects your passion for the sport and ensures your bike stays in peak condition, ready for your next ride.

Suitable for MX / Enduro / Tyres / Wheels / rims.

Strength - these units have a mortise and tenon type fixing - incredibly strong and pretty much hidden from view.  The tolerance is tight and this is the reason that there has to be a range of sizes to suit various thicknesses of plywood.

There are three sizes for plywood thicknesses -
17.3 mm (Standard for formply in Australia) - will work well with 16.8mm to 17.8mm
17.9 mm (Actual thickness of 0.703" - popular in the USA) - will work well from 17.4mm to 18.4mm
18.5 mm (Actual thickness of 23/32 is 18.3mm) will work well from 18.5mm to 19mm

File formats as follows:

PDF / AI / DXF / SVG

There is also a simple machining guide / assembly guide included in the file pack.

Note - Version 3 updates as follows:

Additional holes in side rails

Increased holes in tie down rack

Straight section resting against the wall - (removed small tab to fit all styles of french cleats, regardless of spacing)

These minor changes are not evident in the media attached, but are included in the sample file section for clarity.

You are purchasing a set of digital files - not the physical unit shown in the photos
