Digital Plans / Files - SHED - downlight adaptor for hat section - For CNC machining!

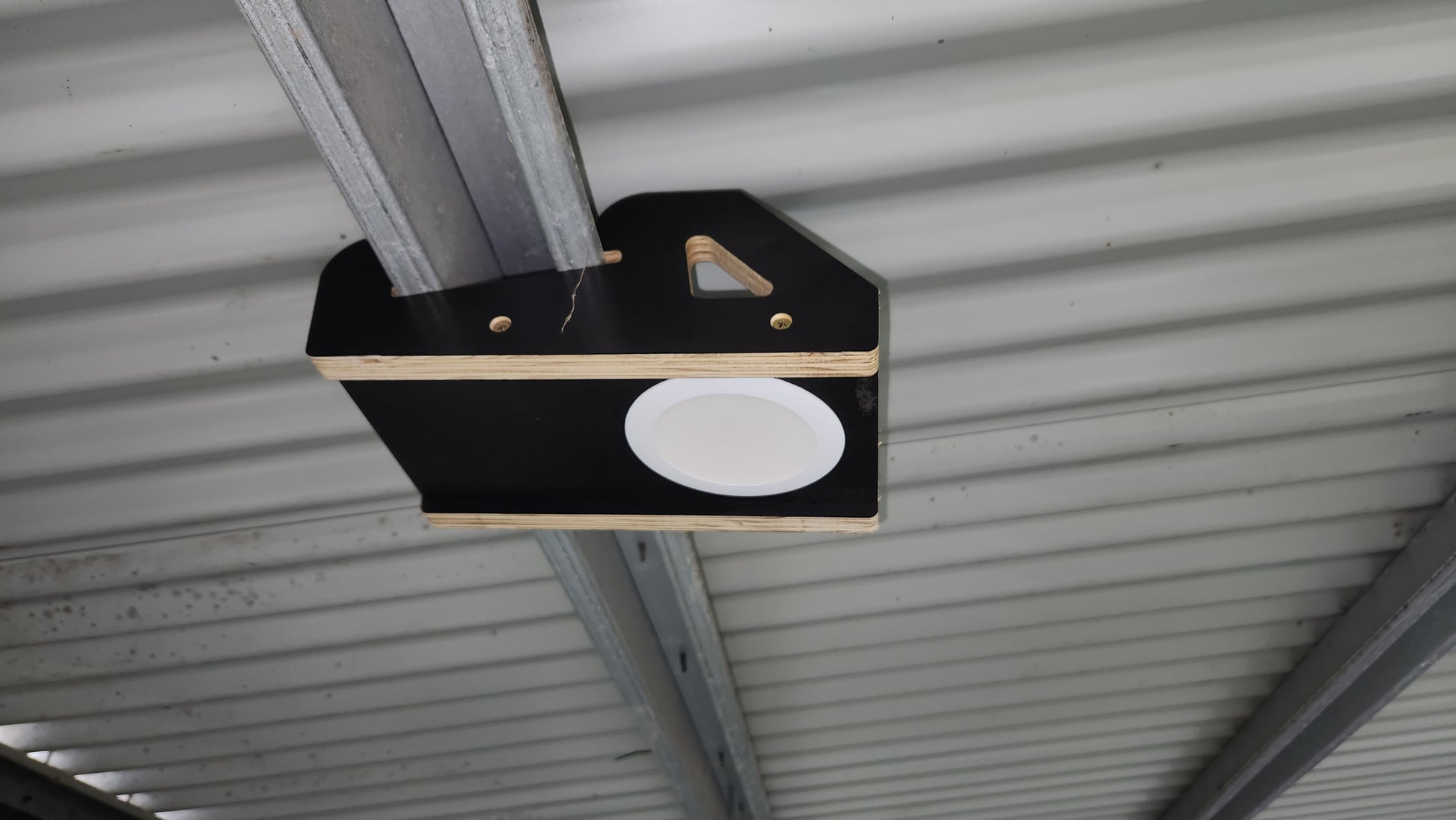

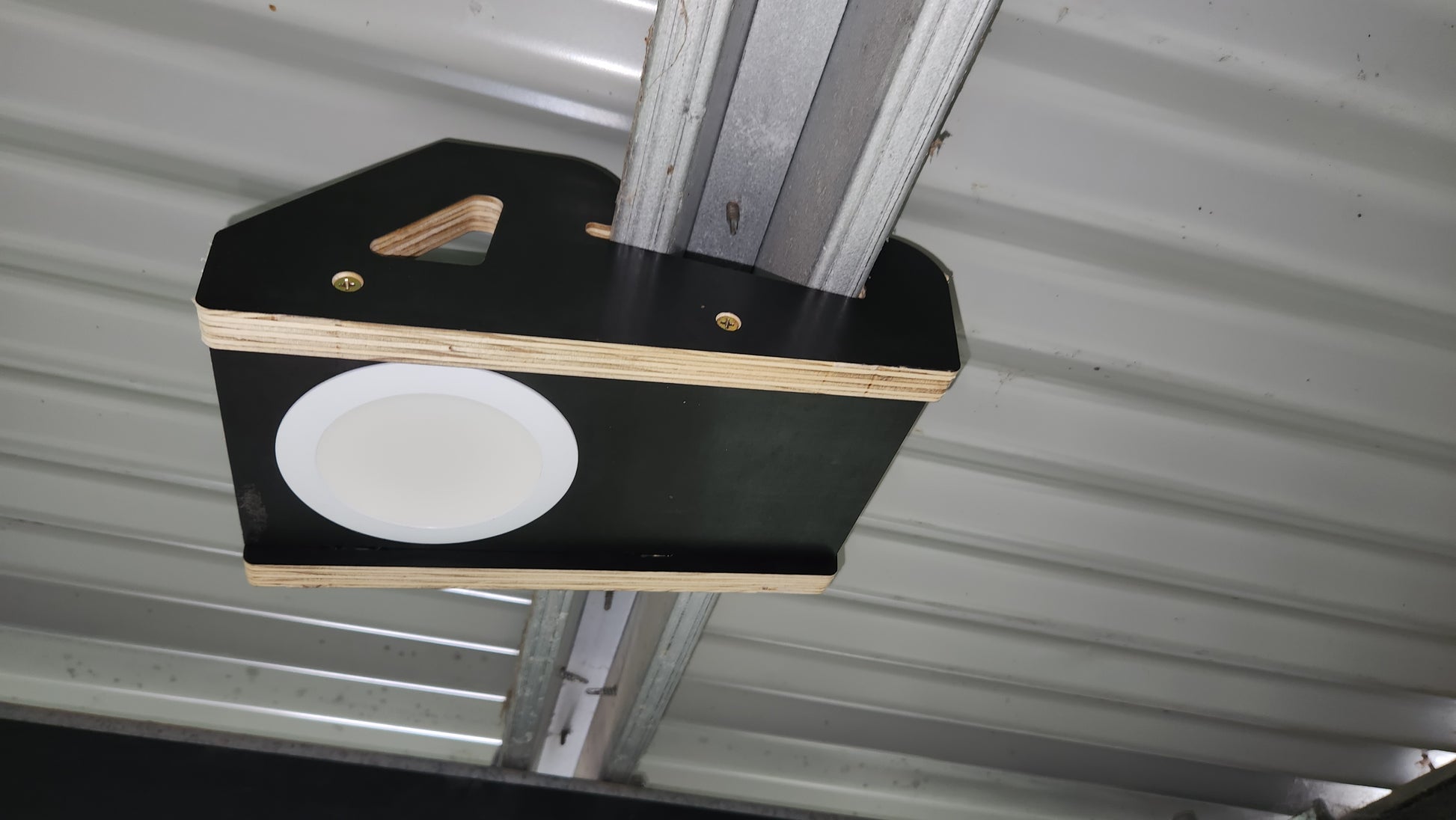

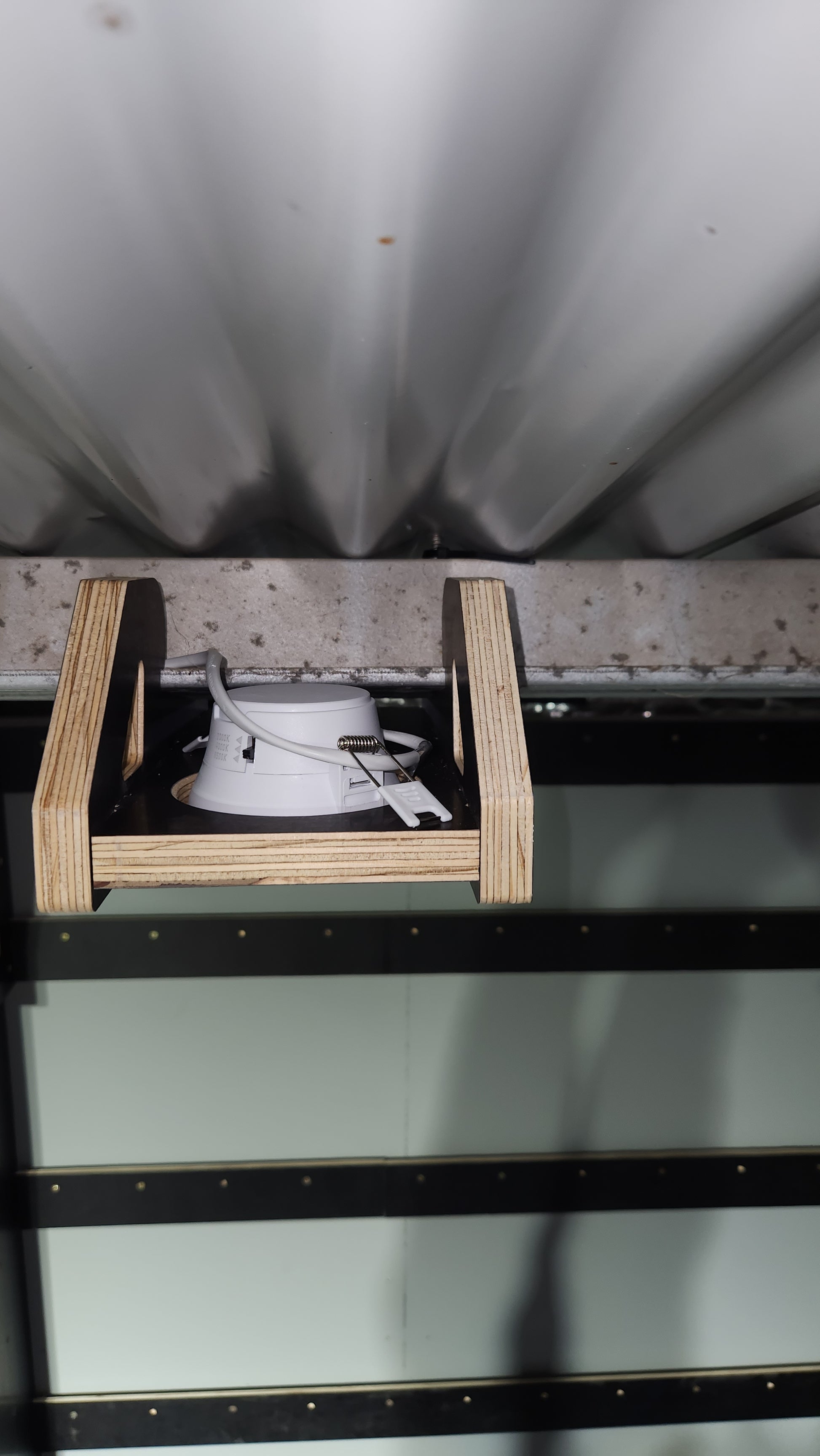

Transform your shed lighting with this innovative downlight adaptor design. Perfect for CNC machining, this digital file lets you retrofit standard downlights to match a standard roof pitch—the latest version accommodates the popular 11-degree angle. Assembly is straightforward and installation takes mere seconds, delivering affordable, efficient illumination that rivals premium alternatives. Ideal for DIY enthusiasts seeking practical, cost-effective solutions to brighten their workspace.

The kit is reversible using the Australian made plywood.  The material of choice is17mm thick! - This is not a flimsy item - and lends itself toward a durable and long lasting product!

There are 4 digital files to choose from for machining- dxf, PDF, ai, svg

There is one file for a guide - simple text file - to assist with machining and also drawing setup.  The drawings are all colour coded to assist with tool paths.

Note -  the CAD drawings cater for three thicknesses of plywood 17mm, 18mm and 19mm.
